Signature

Soaring Audio products allow you to hear deeper into the rest of your audio system.  You will hear things on your favorite CDs and movies that have remained hidden for years.  It is like hearing a piece for the first time.

"I've watched 'Shrek' dozens of times with my kids.  I never before heard the chain being dragged by the dragon."
     Comment from CES staff member after watching a tube enhancement amp demo.

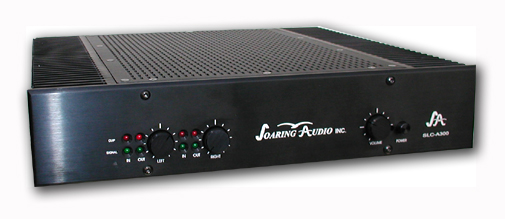

Signature Home Theater Stereo Amplifier  300 watts

Amplifier Features

• Careful attention has been paid to phase response at all frequencies. It is faithful to the original.

• Extremely wide and deep sweet spot. Ideal for home theater seating.

• High current output: floor pounding bass with super dynamic mids and highs.

• Fast slew rate: no smearing of harmonic detail. You will hear details in your favorite recordings that have been hidden for years.

• Massive heat sinks eliminate the need for a fan.

• Power supply ripple is so low that you’ll think the amplifier is off when the source is muted.

Tube emulator

The tube emulator gives the listening experience that tube lovers want without the inevitable maintenance issues of tubes. It provides:

• Acoustic Restoration: smooths out digital grit. Digital to Analog converters are less than perfect. The tube emulator “smooths across” these discontinuities and gives the impression of having a higher sampling rate.  In surround sound it brings out details that are lost because of the compression in 5.1 formats.

• Enhanced imaging: left and right enhanced outputs combine to form a solid phantom center channel that is wide and deep.

• Dynamic detailing: increases the perceptual dynamic range, at any output level.

  In video images, the apparent sharpness of a picture can be increased by employing a technique called edge enhancement. The impression to the human eye is that the focus has been sharpened and more detail is visible. In an analogous way, by adding a tiny emphasis to certain details in the waveform, the impression to the human ear is that the details of the sound stage are more clearly perceived.

Typical Specifications - Signature Amp

• Load Impedance: Rated for 3 to 16 ohms in Stereo mode
• Output Power per Channel:
• 150 watts at 4 ohms RMS
• 100 watts at 8 ohms RMS

Input Level: 1-4 volts RMS

Required AC Mains: 60Hz 120VAC Optional: 240VAC

Watts: 6 plugged in 60 on-idling 500 full power

Frequency Response: -3dB from 0.1 Hz to 300 kHz at 1 watt

Hum: typically over 120dB below peak output (Over a 100 times quieter than the noise floor of a CD.) See Fanatics Only Hum

Grounding: Double insulated. Premium parts are used along with larger clearances, so a third wire ground is not needed. This eliminates the possibility of ground loops, making the background quieter and preventing hum.

UL Listed: Designed in accordance with UL6500 Audio/Video Apparatus - a more stringent worldwide standard

Weight: 38 pounds; shipping weight 48 pounds

Options: Balanced Input, 240 VAC, Rack mount

Manual for Signature Amp

Signature Amplifier Manual - .pdf

Signature Centerfold: Attention to Every Detail - .pdf
